Kaishan Mining Piston Compressor

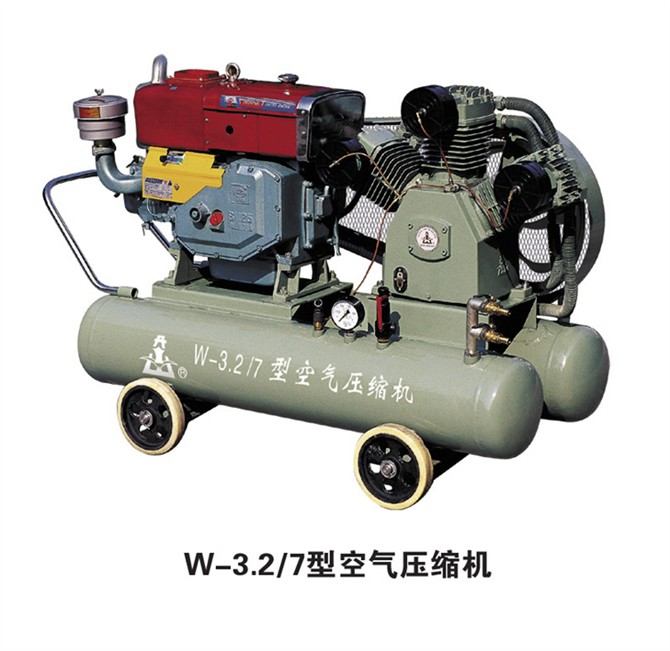

Zhejiang Kaishan Group W-3.2/7 Mining Piston Air Compressor:

Our factory supply many kinds of air compressor! Diesel, Motor, Piston, Screw type etc.

1 Cylinder diameter(mm)/Cylinder No.: 125/3

2 Stroke (mm): 100

3 Rated pressure(Mpa): 0.7

4 Rated speed (r/min): 960

5 capacity ( m3/min): 3.2

6 Volume of tank (L): 230

7 Displacing valve: Sweden imported thick stainless steel

8 Cylinder structure: Integral suppressed aluminum alloy

9 Lubrication method: Oil needle splash

10 Cooling method: Air cooled

11 Diesel motor: S1125, 20KW 25HP

12 Dimension(L W H) (mm) 196/90/125

13 N. W (kg): 550

14: G. W (kg): 650

15 Carton size (mm): 200/95/130

Specification:

Model			W-3.2/7
Capacity (m3/min)			3.2
Exhaust pressure (Mpa)			0.7
Cylinder (Dia*Qty)			125*3
Diesel Engine/Motor			S1125 Diesel (25 HorsePower)
Volume of gas storage tank (L)			230
Diemension (L*W*H) mm			1920*960*1350
Tyres			4
Weight (kg)			550
